规格: 价格:
48 T ¥1680.00
96 T ¥2400.00


Product name: Mouse IL23(Interleukin 23) ELISA Kit
Reactivity: Mouse
Alternative Names: IL-23;IL23A; P19; IL23P19; SGRF; Interleukin-23 subunit alpha
Assay Type: Sandwich
Sensitivity: 2.9 pg/mL
Standard: 500 pg/mL
Range: 7.82-500 pg/mL
Sample Type: Serum, plasma, tissue homogenates, cell lysates, cell culture supernates and other biological fluids
Assay Length: 3.5h
Research Area: Cytokine;Tumor immunity;Infection immunity;
Test principle: The test principle applied in this kit is Sandwich enzyme immunoassay. The microtiter plate provided in this kit has been pre-coated with an antibody specific to Interleukin 23(IL23). Standards or samples are added to the appropriate microtiter plate wells then with a biotin-conjugated antibody specific to Interleukin 23(IL23). Next, Avidin conjugated to Horseradish Peroxidase (HRP) is added to each microplate well and incubated. After TMB substrate solution is added, only those wells that contain Interleukin 23(IL23), biotin-conjugated antibody and enzyme-conjugated Avidin will exhibit a change in color. The enzyme-substrate reaction is terminated by the addition of sulphuric acid solution and the color change is measured spectrophotometrically at a wavelength of 450nm ± 10nm. The concentration of Interleukin 23(IL23) in the samples is then determined by comparing the OD of the samples to the standard curve.

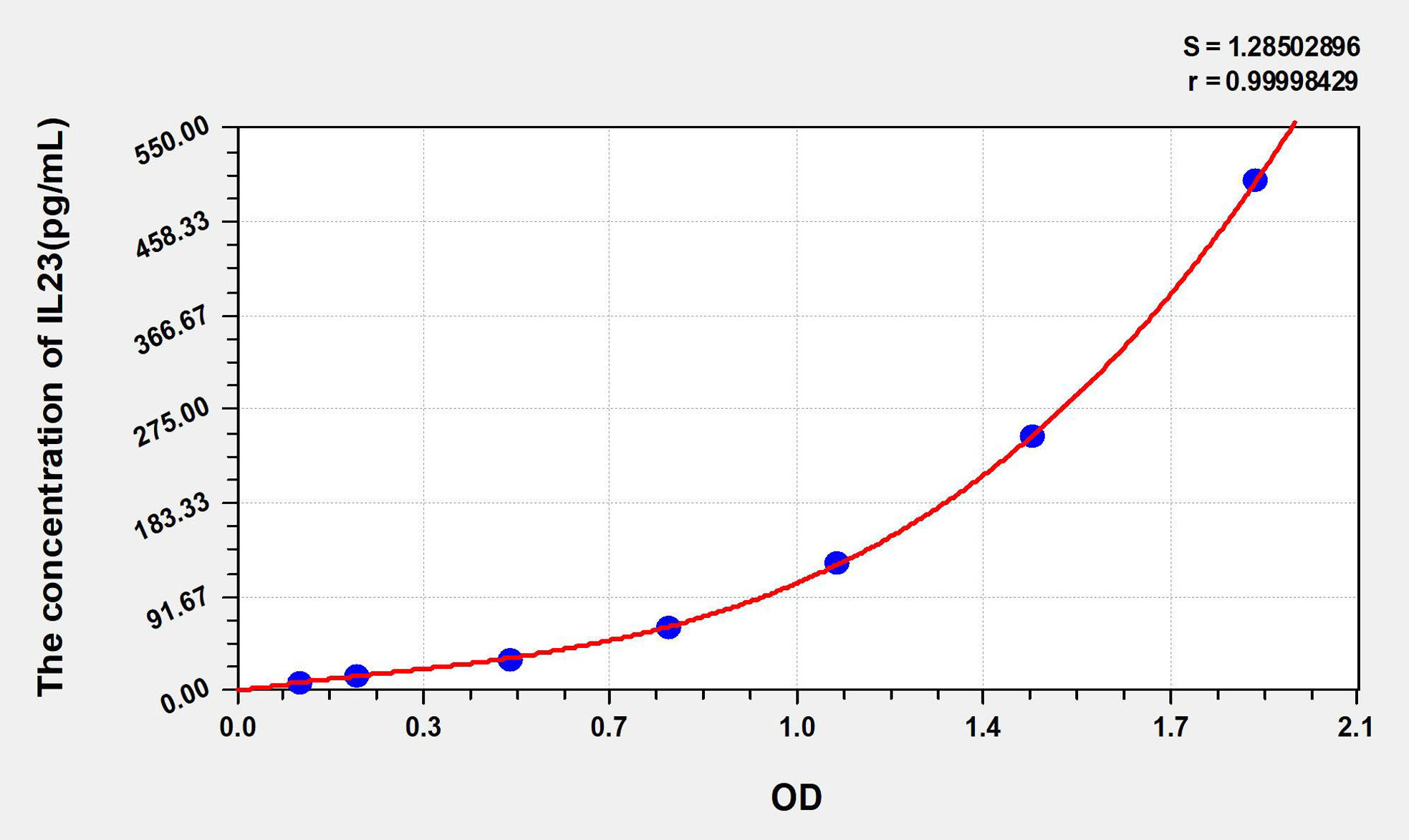

Concentration (pg/mL) OD Corrected OD
500.00 1.996 1.894
250.00 1.582 1.480
125.00 1.217 1.115
62.50 0.905 0.803
31.25 0.608 0.506
15.63 0.324 0.222
7.82 0.217 0.115
0.00 0.102 0.000


Intra-assay Precision (Precision within an assay):CV%<8%

Three samples of known concentration were tested twenty times on one plate to assess intra-assay precision.

Inter-assay Precision (Precision between assays):CV%<10%

Three samples of known concentration were tested in forty separate assays to assess inter-assay precision.


Matrices listed below were spiked with certain level of recombinant IL23 and the recovery rates were calculated by comparing the measured value to the expected amount of IL23 in samples.
Matrix Recovery range Average
serum(n=5) 86-98% 92%
EDTA plasma(n=5) 82-98% 87%
Heparin plasma(n=5) 88-99% 93%


The linearity of the kit was assayed by testing samples spiked with appropriate concentration of IL23 and their serial dilutions. The results were demonstrated by the percentage of calculated concentration to the expected.
Matrix 1:2 1:4 1:8 1:16
serum(n=5) 86-93% 91-96% 87-98% 95-102%
EDTA plasma(n=5) 84-99% 83-95% 83-95% 96-101%
Heparin plasma(n=5) 85-100% 84-98% 97-101% 88-96%
